SLC-5020A LC Meter

Variable Capacitor 15 pF ~ 320 pF
X750 ☆ ASP7620

General Radio 1422-CB Variable Capacitor
1422-CB 3256

SLC-5020A Measure without shaking within the measurement range.

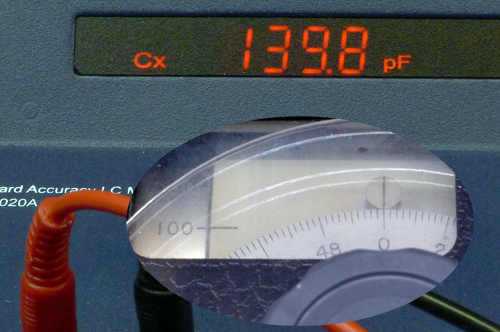

1422-CB Scale 100.0 139.8 pF +39.8 pF + 0.8 pF

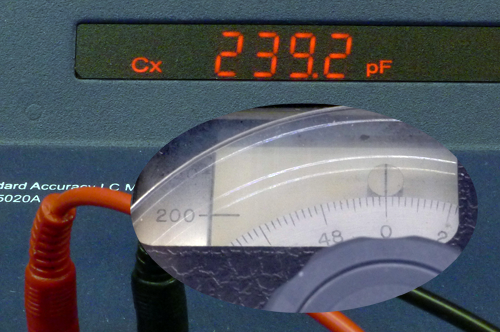

1422-CB Scale 200.0 239.2 pF +39.2 pF + 0.2 pF

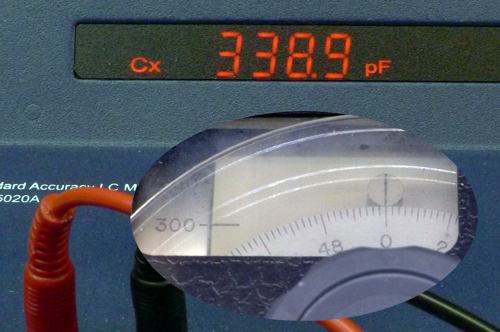

1422-CB Scale 300.0 338.9 pF +38.9 pF - 0.1 pF

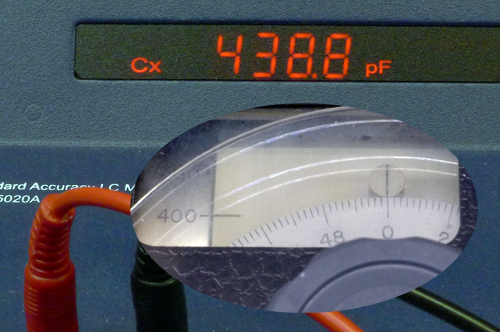

1422-CB Scale 400.0 438.8 pF +38.8 pF - 0.2 pF

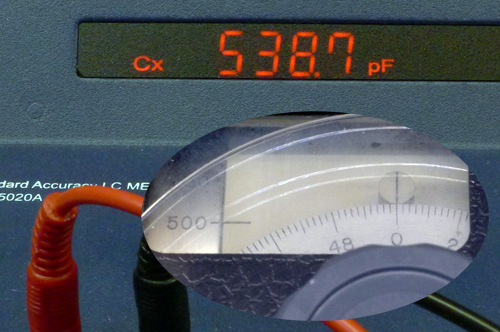

1422-CB Scale 500.0 538.7 pF +38.7 pF - 0.3 pF

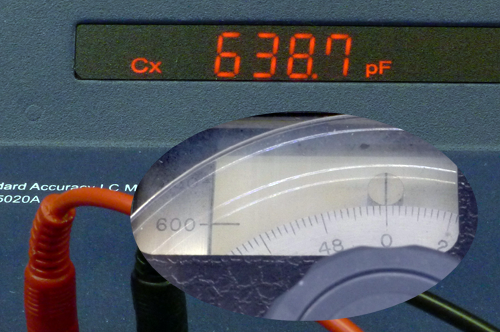

1422-CB Scale 600.0 638.7 pF +38.7 pF - 0.3 pF

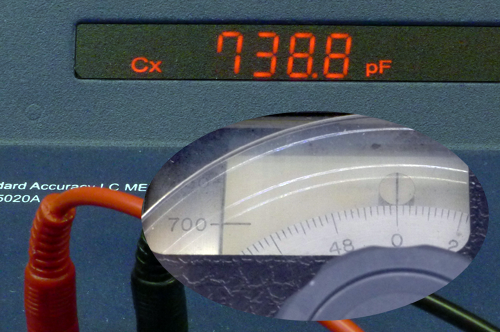

1422-CB Scale 700.0 738.8 pF +38.8 pF - 0.2 pF
1422-CB Scale 800.0 838.9 pF +38.9 pF - 0.1 pF

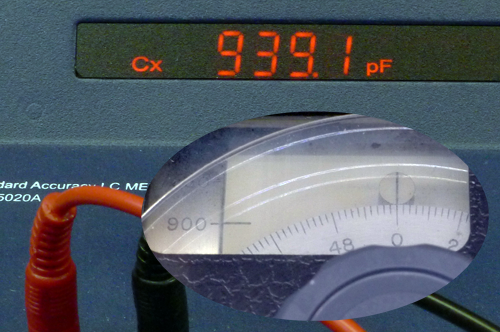

1422-CB Scale 900.0 939.1 pF +39.1 pF +0.1 pF

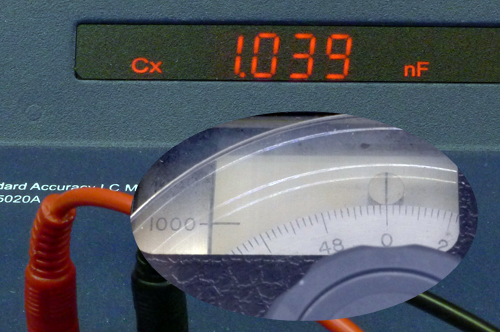

1422-CB Scale 1000.0 1039 pF +39 pF

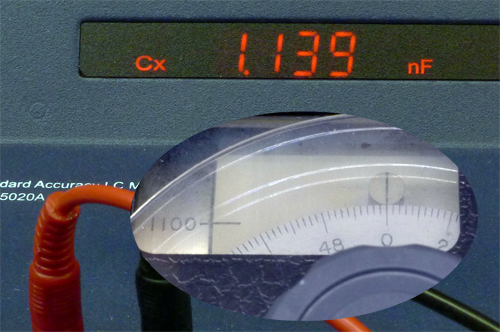

1422-CB Scale 1100.0 1139 pF +39 pF

1422-CB Scale	SLC-5020A Measures (with floating capacity)	Difference from actual scale (39 pF ±)
1,100 pF	1,139 pF	*
1,000 pF	1,039 pF	*
900 pF	939.1 pF	+ 0.1 pF
800 pF	838.9 pF	- 0.1 pF
700 pF	738.8 pF	- 0.2 pF
600 pF	638.8 pF	- 0.2 pF
500 pF	538.7 pF	- 0.3 pF
400 pF	438.7 pF	- 0.3 pF
300 pF	338.9 pF	- 0.1 pF
200 pF	239.2 pF	+ 0.2 pF
100 pF	139.8 pF	+ 0.8 pF

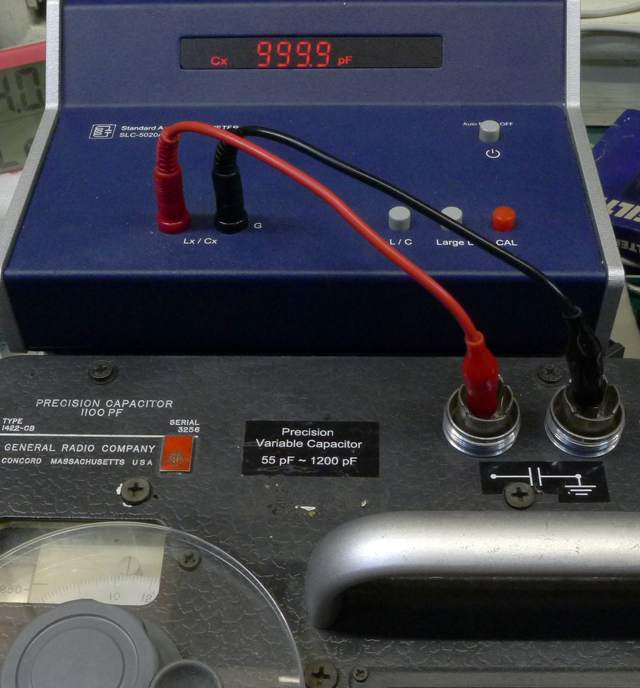

General Radio 1422-CB 1100pF Variable Capacitor (1963 $300.00)

These are capacitors made in the 1960s and fit well on a physical scale.

In SLC-5020A, the actual capacity between terminals is measured and displayed.

In the impedance bridge method, a stray capacitance of 39 pF (capacitance between shields) is subtracted from the measurement.

Variable Capacitor

15 pF ~ 320 pF

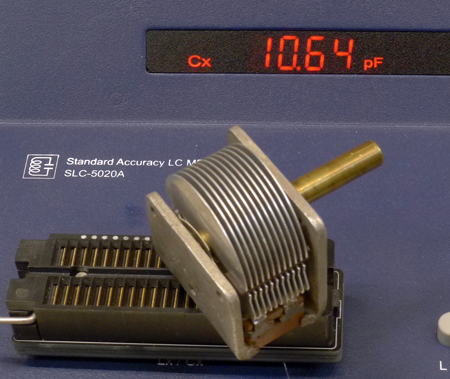

X750 ☆ ASP7620 Minimum 10.64 pF

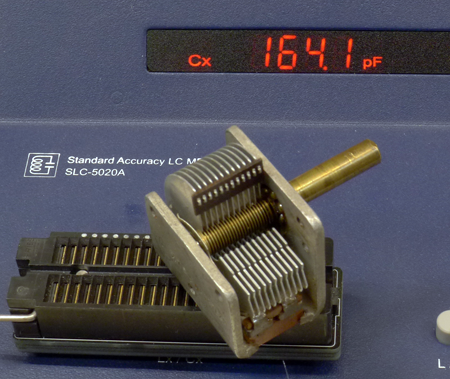

X750 ☆ ASP7620 Midium 164.1 pF

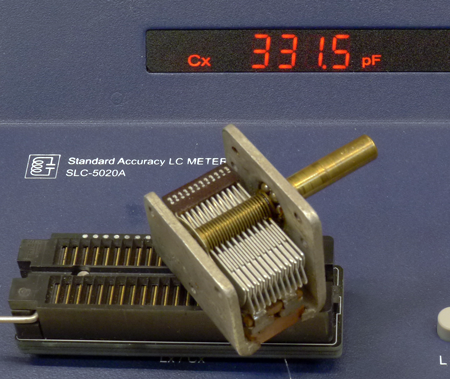

X750 ☆ ASP7620 Mximum 331.5 pF

Do you want to have a standard?

Standard Accuracy LC Meter
SLC-5020A

Meter using precision LC resonance method
The display does not shake and measures accurately.
