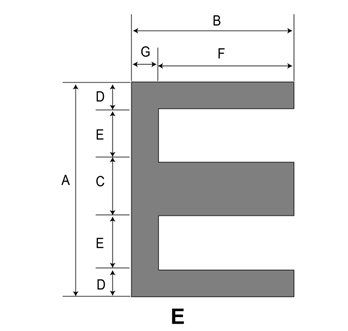

PATTERNS |
A |
B |
C |
D |
E |
F |
G |
T |
GRADE |
|
EL 7.72 ( EL 100 ) |
7.72 |
9.9 |
2.54 |
1.32 |
1.27 |
8.48 |
1.42 |
0.15 / 0.20 |
PB / PC |
|
EL 7.94 |
7.94 |
9.9 |
2.54 |
1.32 |
1.38 |
8.48 |
1.42 |
0.15 / 0.20 |
PB / PC |
|
EL 12.7 |
12.72 |
11.11 |
3.18 |
1.59 |
3.18 |
9.53 |
1.58 |
0.20 / 0.35 |
PB / PC |
|
EL 14 |
14 |
10.6 |
3.5 |
1.8 |
3.5 |
8.8 |
1.8 |
0.20 / 0.35 |
PB / PC |
|
EL 16 |
16 |
14 |
4 |
2 |
4 |
12 |
2 |
0.15 / 0.20 / 0.35 |
PB / PC |
|
EL 16(LOSS) |
16 |
16 |
4.8 |
2.4 |
3.2 |
13.6 |
2.4 |
0.15 / 0.20 / 0.35 |
PB / PC |
|
EL 19 |
19 |
15 |
4.75 |
2.375 |
4.75 |
12.5 |
2.5 |
0.15 / 0.20 / 0.35 |
PB / PC |
|
EL 19(LOSS) |
19 |
18 |
4.9 |
2.4 |
4.65 |
14 |
4 |
0.15 / 0.20 / 0.35 |
PB / PC |
|
EL 186 |
19.04 |
11.13 |
4.76 |
2.38 |
4.76 |
8.73 |
2.4 |
0.20 / 0.35 |
PB / PC |
|
EL 187 |
19.08 |
15.9 |
4.77 |
2.385 |
4.77 |
13.5 |
2.4 |
0.20 / 0.35 |
PB / PC |
|
EL 20 |
20 |
20 |
6 |
3 |
4 |
17 |
3 |
0.20 / 0.35 |
PB / PC |
|
EL 24 |
24 |
18 |
6 |
3 |
6 |
15 |
3 |
0.20 / 0.35 |
PB / PC |
|
EL 24-25 |
25.4 |
19.05 |
6.35 |
3.175 |
6.35 |
15.875 |
3.175 |
0.20 / 0.35 |
PB / PC |
|
E 186 |
19.05 |
9.7 |
4.77 |
2.38 |
4.76 |
7.3 |
2.4 |
0.20 / 0.35 |
PB / PC |
|
E 25.4 |
25.4 |
12.7 |
6.35 |
3.175 |
6.35 |
9.525 |
3.175 |
0.20 / 0.35 |
PB / P |
|

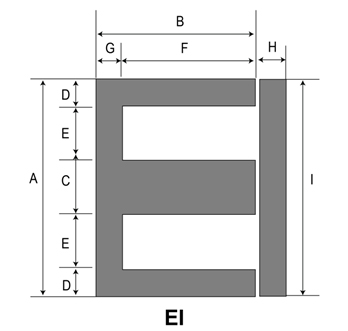

PATTERNS |
A |
B |
C |
D |
E |
F |
G |
H |
I |
T |
GRADE |
|
EI14 |
14 |
8.75 |
3.5 |
1.75 |
3.5 |
7 |
1.75 |
1.75 |
14 |
0.20 / 0.35 |
PB / PC |
|
EI16 |
16 |
12 |
4 |
2 |
4 |
10 |
2 |
2 |
16 |
0.20 / 0.35 |
PB / PC |
|
EI19 |
19 |
12.5 |
4.75 |
2.375 |
4.75 |
10 |
2.5 |
2.5 |
19 |
0.20 / 0.35 |
PB / PC |
|
EI186 |
19.08 |
8.75 |
4.77 |
2.385 |
4.77 |
6.35 |
2.4 |
2.4 |
19.08 |
0.20 / 0.35 |
PB / PC |
|
EI187 |
19.08 |
13.51 |
4.77 |
2.385 |
4.77 |
11.11 |
2.4 |
2.4 |
19.08 |
0.20 / 0.35 |
PB / PC |
|
EI24 |
24 |
15 |
6 |
3 |
6 |
12 |
3 |
3 |
24 |
0.20 / 0.35 |
PB / PC |
|
EI25.4 |
25.4 |
16.1 |
6.4 |
3.1 |
6.4 |
13.1 |
3 |
3 |
25.4 |
0.20 / 0.35 |
PB / PC |
|
EI28 |
28 |
21.5 |
7 |
3.5 |
7 |
18 |
3.5 |
3.5 |
28 |
0.20 / 0.35 |
PB / PC |
|
EI30 |
30 |
20 |
10 |
5 |
5 |
15 |
5 |
5 |
30 |
0.20 / 0.35 |
PB / PC |
|
EI35 |
35 |
24.5 |
9.6 |
5 |
7.7 |
19.5 |
5 |
5 |
35 |
0.20 / 0.35 |
PB / PC |
|
EI41 |
41 |
27 |
13 |
6 |
8 |
21 |
6 |
6 |
41 |
0.20 / 0.35 |
PB / PC |
|
EI48 |
48 |
32 |
16 |
8 |
8 |
24 |
8 |
8 |
48 |
0.20 / 0.35 |
PB / PC |
|
EI60 |
60 |
40 |
20 |
10 |
10 |
30 |
10 |
10 |
60 |
0.20 / 0.35 |
PB / PC |
|
EI66 |
66 |
44 |
22 |
11 |
11 |
33 |
11 |
11 |
66 |
0.20 / 0.35 |
PB / PC |
