Function button
|
button
|
Function
|
|
|
Power : Power on and off.
To turn on, press the power button for more than 1 second.
|
|
L / C
|
Switch between Lx and Cx modes.
Always start in Cx mode after power on.
|
|
Large L
|
In Lx mode, bulky inductors are measured with this button. (single shot)
|
|
CAL
|
Calibration : Cx is the measurement terminal open, and Lx is short.
|
Capacitor (Condenser) Measuremen
|
|
Press and hold the power button for more than 1 second.
|
If the display is not 0.00 (± 1)
Input Probe Open
|
|
Press the CAL button before inserting a capacitor into the flute.
|
Put the capacitor to be measured in the measuring flute.
Inductor (coil) measurement
|
|
Change from Cx mode to Lx mode.
|
No coil is displayed because the inductor or jumper is not connected yet.
Input Probe Short
|
|
Short the measuring terminal (jumper) and press the CAL button.
¡Ø 0 nH based on jumper length.
|
Insert the inductor to be measured and measure.
Bulky Inductor
|
|

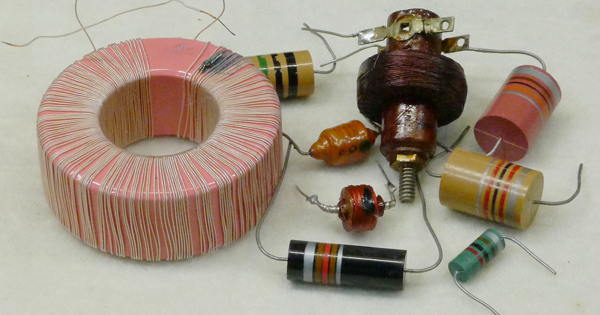

If it is a bulky inductor (an inductor with large parasitic capacitance) as shown in the picture, press the Large L button after connecting the inductor.
¡Ø In Large L mode, it is a single shot measurement and the display is held.
|
|
Standard Accuracy LC Meter SLC-5020A
|
|
